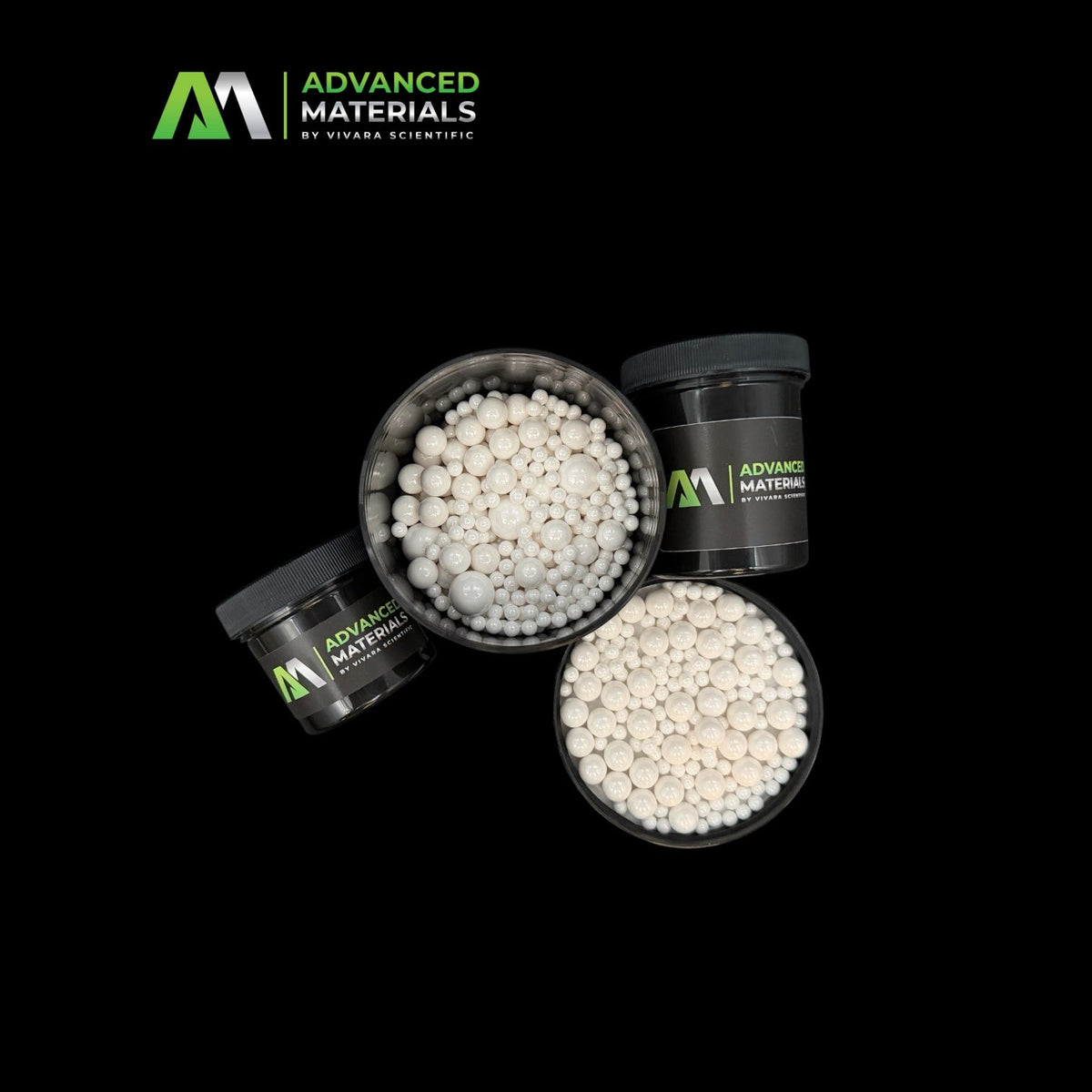

Grinding Media
Grinding media determines your particle size, your batch time, and - often overlooked - what ends up in your powder that you didn't put there. We supply yttria-stabilized zirconia, zirconia-toughened alumina, alumina, zirconium silicate, agate, and tungsten carbide media from sub-millimeter micro beads to 20 mm balls, with full specifications on every listing.
How to choose grinding media
Start with contamination, not price. Every media wears, and that wear ends up in your product. Match the media chemistry to what you can tolerate: zirconia for battery cathode and anode powders, where trace alumina shifts electrochemistry; alumina for oxide ceramics; agate where any metal oxide is unacceptable. If you are milling a material harder than your media, you are grinding the media, not the sample.
Density sets your milling energy. Denser media transfers more impact energy per collision, so it reduces particle size faster at the same speed. YSZ at 6.0 g/cm³ mills roughly twice as fast as alumina at 3.7 g/cm³ under identical conditions. Tungsten carbide at 14.9 g/cm³ is faster still, but is rarely worth the cost or the contamination risk outside hard-metal work.
Bead size follows target particle size, not batch size. Smaller beads give more contact points and finer, narrower distributions; larger beads break coarse feed down quickly but plateau early. For wet bead milling to sub-micron, 0.1–0.5 mm is typical. For dry planetary milling from coarse powder, 5–10 mm. Many processes run a coarse stage and a fine stage with different media.
Judge cost per batch, not cost per kilogram. Higher-grade media costs more upfront and lasts several times longer, so the cheaper option is frequently the more expensive one — and it contaminates more along the way.
Not sure which fits your process? Tell us your material, target particle size, and mill type, and we'll recommend a media and loading. Our team includes working materials scientists, not just sales.
