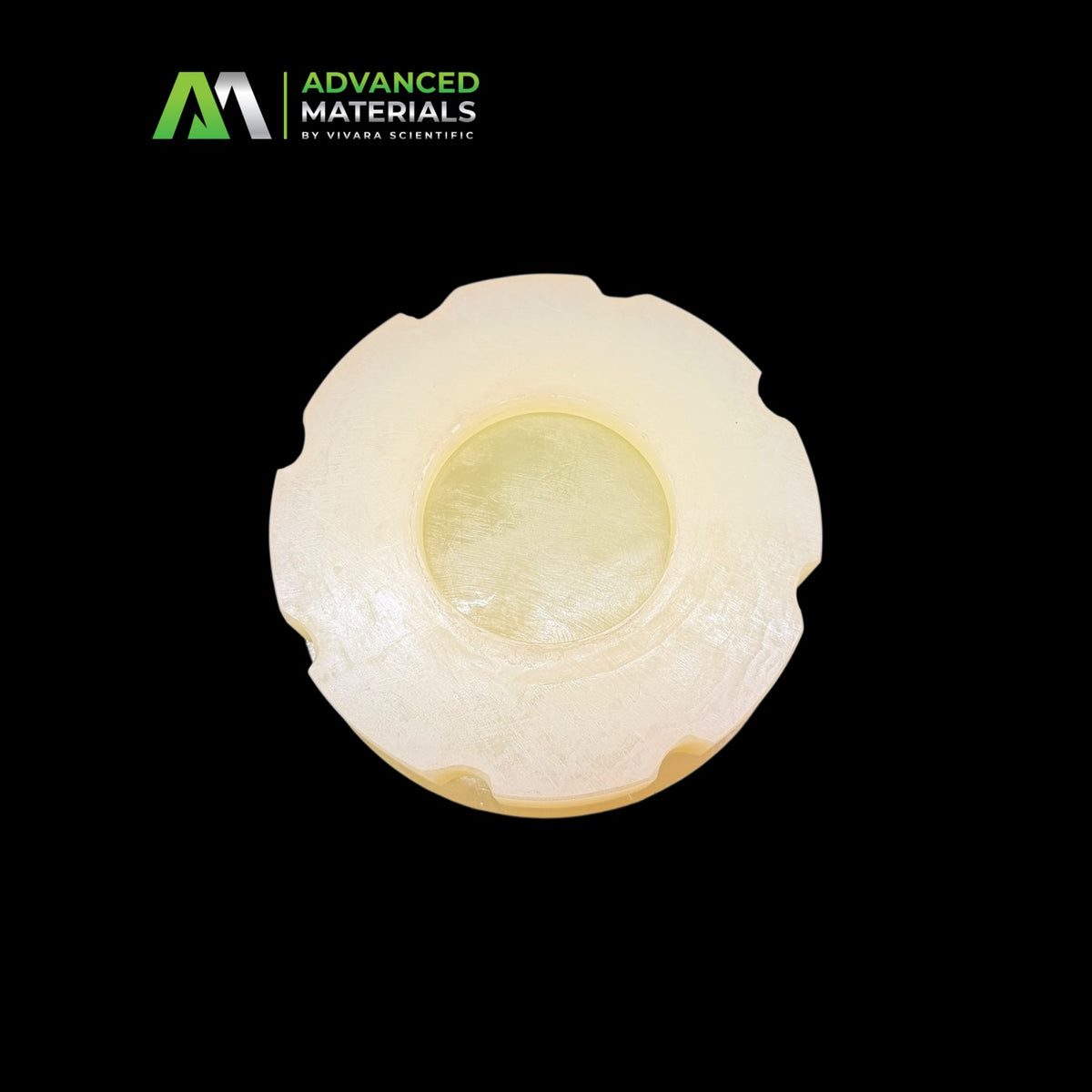

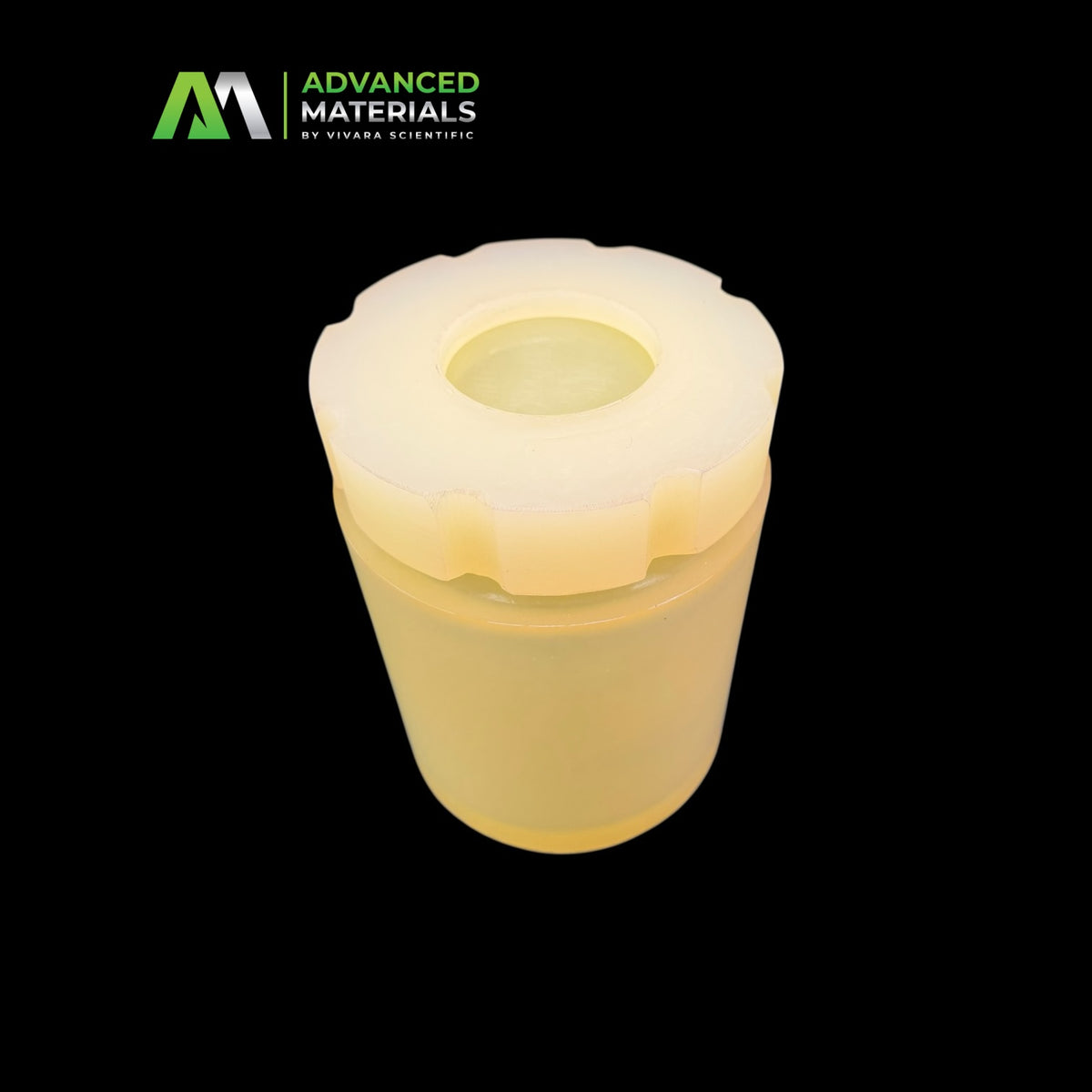

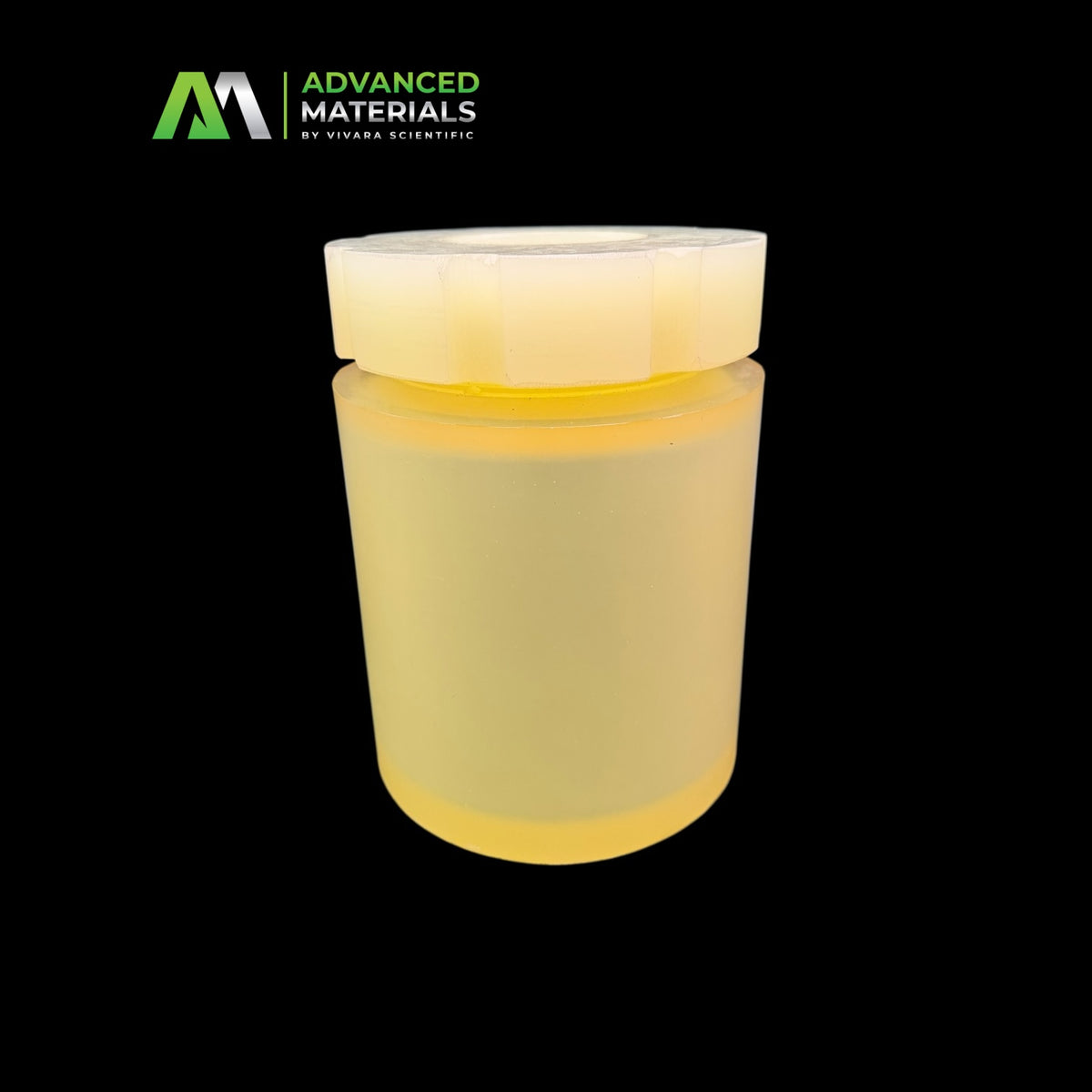

Polyurethane roller mill jar, 2000 ml. A tough, chemically resistant polymer jar for gentle roller milling and slurry homogenising. Polyurethane is the softest jar lining we stock, so it introduces almost no contamination and will not break if dropped — the practical choice for large-volume mixing where grinding energy is not the point.

Specification

Property Specification
Material Polyurethane lining
Capacity 2000 ml
Mill type Roller / jar mill
Wear contamination Very low; trace polymer only
Impact resistance Excellent — will not shatter
Chemical resistance Good to most aqueous systems and mild solvents
Not suitable for Strong acids, aromatic and chlorinated solvents, temperatures above 80 °C

Jar material comparison

Material Hardness Density Contamination risk Breakable Best for
Zirconia High 6.0 g/cm³ Lowest Yes High-purity, battery, electronic ceramics
Alumina Very high 3.6 g/cm³ Al₂O₃ pickup Yes Hard, abrasive minerals and ceramics
Agate High 2.6 g/cm³ SiO₂ pickup Yes Geology, small-batch high-purity
Stainless steel Moderate 7.9 g/cm³ Fe, Cr, Ni No Metals, alloys, mechanical alloying
Tungsten carbide Highest 14.9 g/cm³ W, Co Chips Very hard samples, short cycles
PTFE Very low 2.2 g/cm³ Effectively none No Corrosive media, inert milling
Polyurethane Very low 1.2 g/cm³ Trace polymer No Soft samples, gentle roller milling

Roller vs planetary milling

A roller (jar) mill turns the jar on horizontal rollers, so the media cascades under gravity. A planetary mill spins the jar on a rotating carrier, generating several g of centrifugal force. Planetary mills grind far faster and reach finer particle sizes; roller mills are gentler, quieter, cheaper to run and handle much larger batch volumes. Choose a roller mill for bulk homogenising, slurry mixing and overnight runs where speed is not the constraint.

Applications

  • Slurry homogenising and bulk mixing
  • Gentle deagglomeration of soft powders
  • Pigment and coating pre-dispersion
  • Sample preparation where metal and ceramic contamination is unacceptable
  • Long overnight runs at low energy

Choosing polyurethane

Polyurethane contributes essentially no grinding energy of its own, so pair it with dense media — zirconia or alumina — and expect longer cycles than a ceramic jar. If you need real size reduction rather than mixing, use an alumina or zirconia jar instead. If you need chemical inertness above all, PTFE resists a wider solvent range.

Ordering

Sold per jar, lid and seal included. Other capacities available on request. Contact us for volume pricing or help matching a jar to your mill.
