Alumina Planetary Milling Jar – 100ml (A grade)

$193.56
Volume
In stock
Buying in bulk? Tell us how much and we'll quote it.
$193.56
$193.56

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

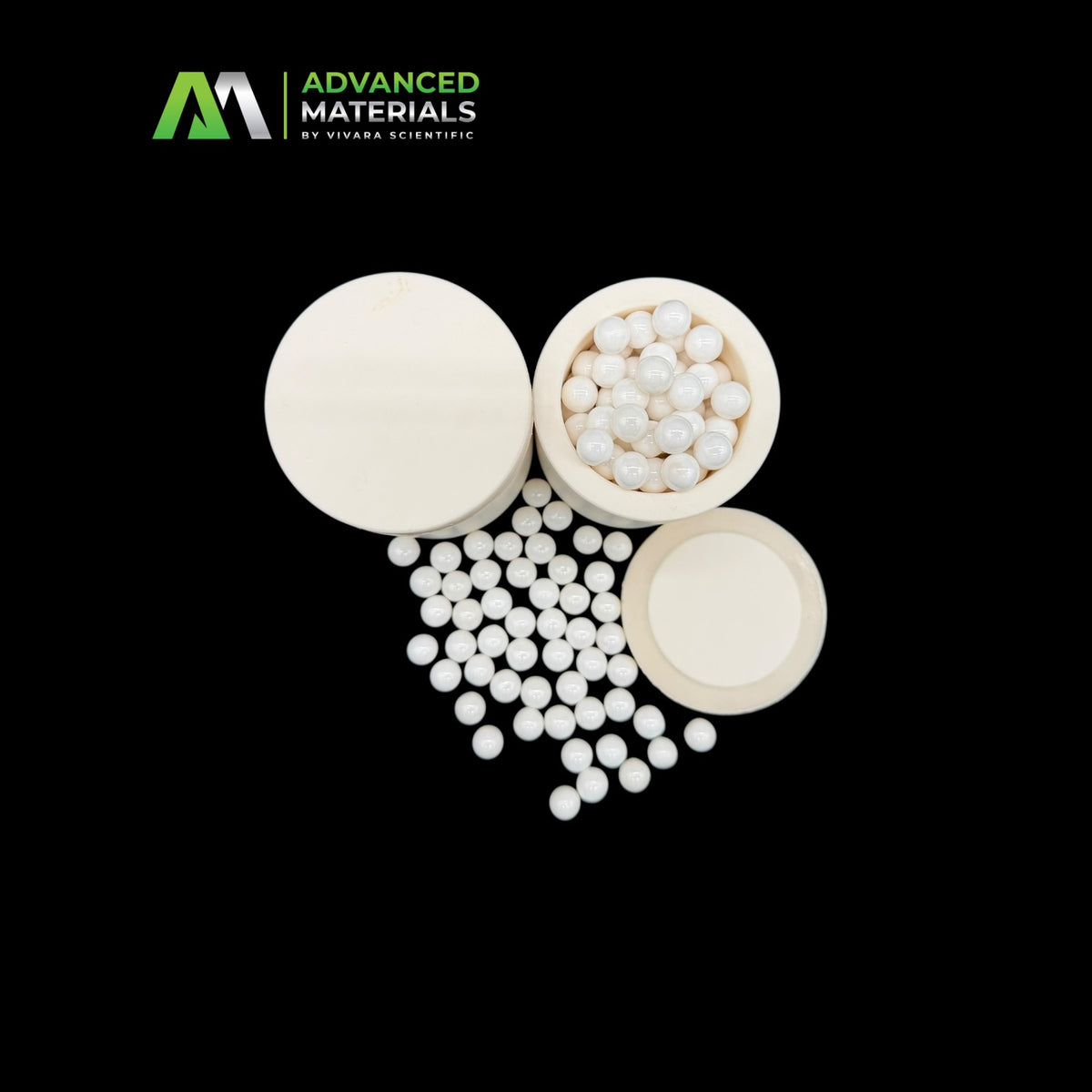

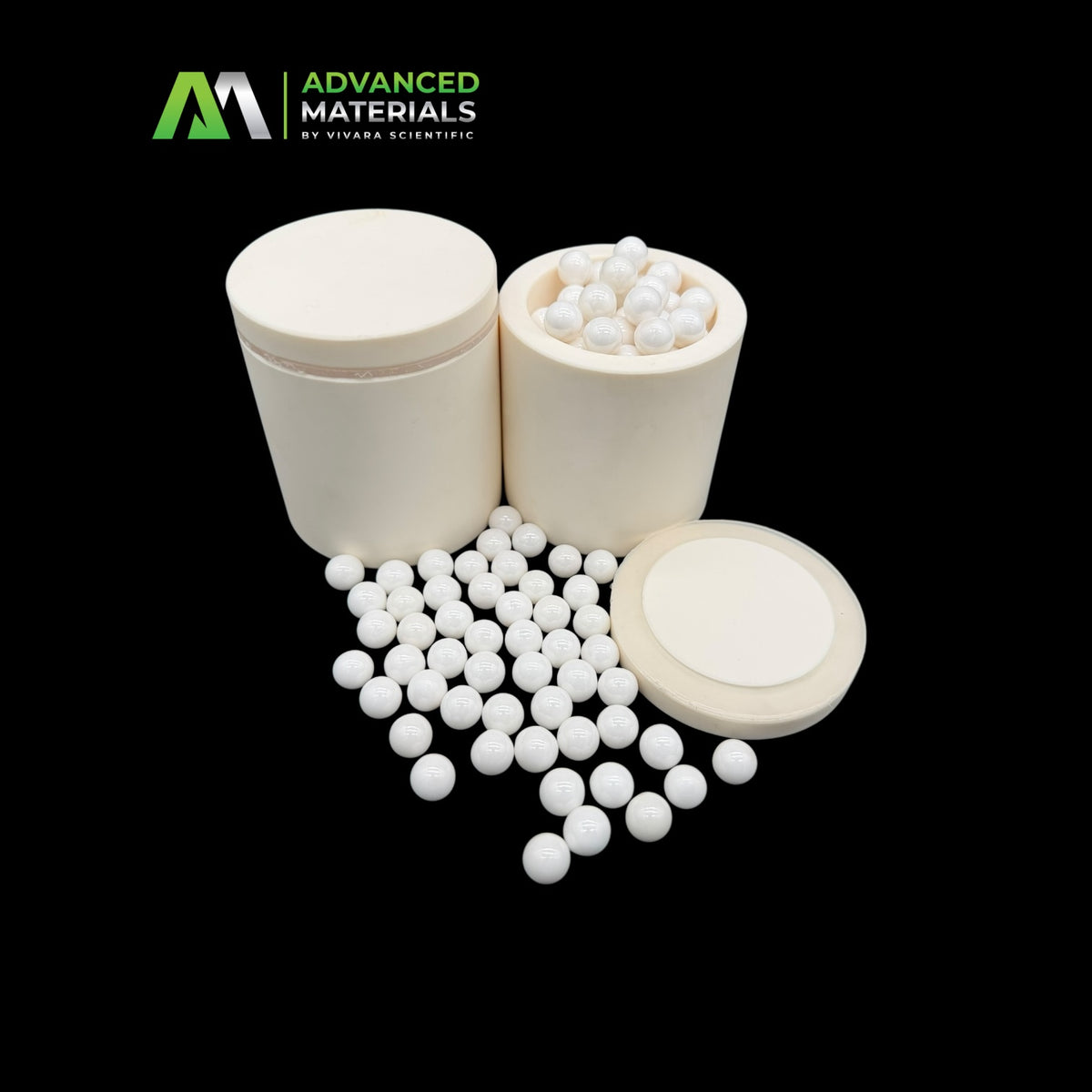

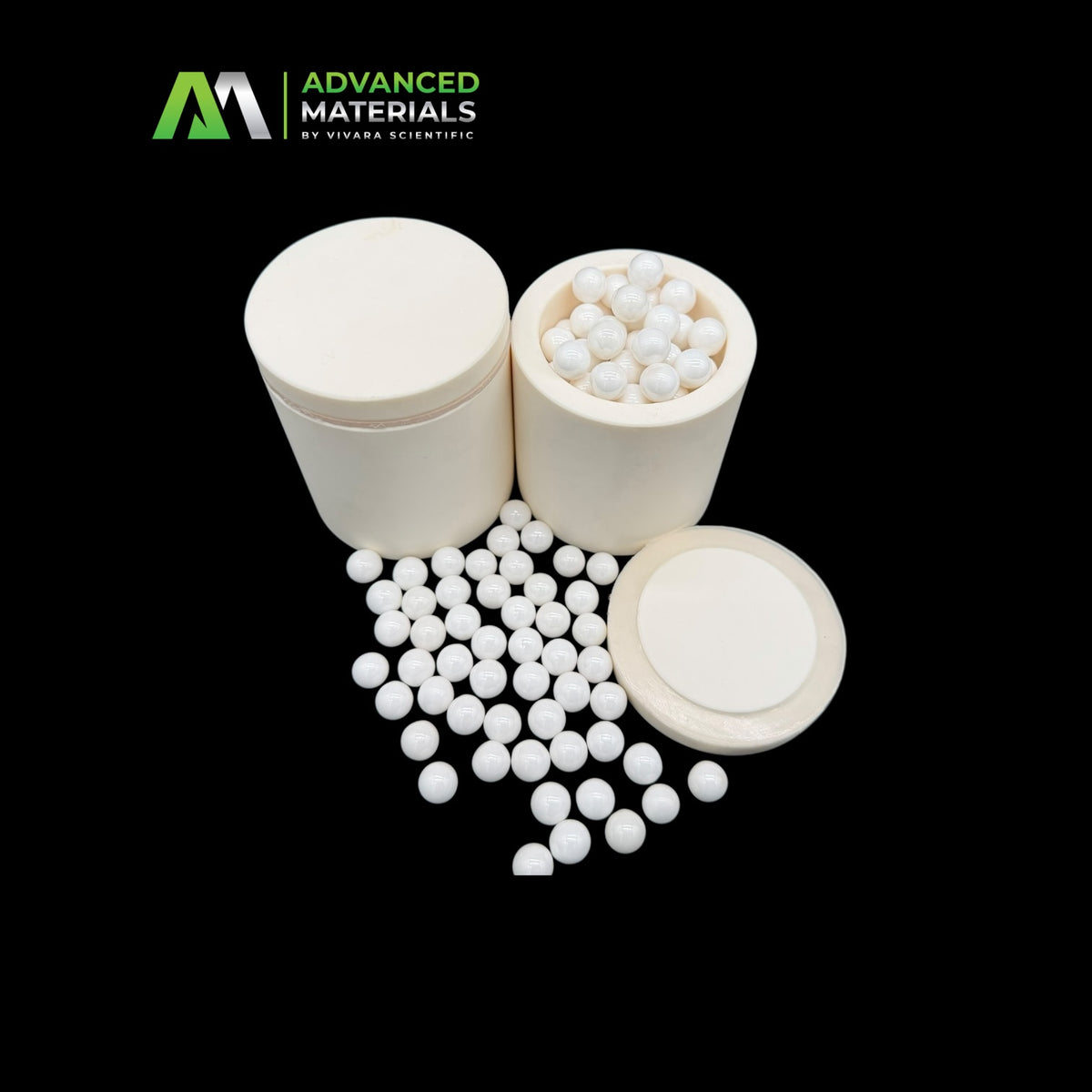

Alumina ceramic (corundum) planetary mill jar, 100ml. Corundum is α-alumina, second only to diamond among common minerals for hardness. It grinds hard and abrasive samples faster than any other jar in this range, at roughly a third the cost of zirconia.

Specifications

Material High-alumina ceramic (corundum, α-Al₂O₃)
Capacity 100ml
Outside diameter 66 mm
Inside diameter 50 mm
Jar body height 62 mm (excluding lid; add approx. 10 mm with lid fitted)
O-ring size 54.5 x 3.55 mm
Temperature resistance High; suitable for hot and thermally cycled work
Chemical resistance Good acid and alkali resistance

Why alumina

  • Extremely hard, so it grinds abrasive minerals and ceramics efficiently
  • High temperature and corrosion resistance
  • Much lower cost than zirconia for non-critical purity work

Handling

Alumina is hard but brittle. It chips or cracks if dropped or knocked against a bench edge, so support the jar with both hands when loading and unloading. Where toughness matters more than hardness, zirconia is the more forgiving ceramic.

Choosing alumina

Alumina wears faster than zirconia and the debris is Al₂O₃. If aluminium is a contaminant in your system, or you need the lowest possible pickup, choose zirconia.

Ordering

Sold per jar, lid and seal included. Other capacities available on request. Contact us for volume pricing or help matching a jar to your mill.
