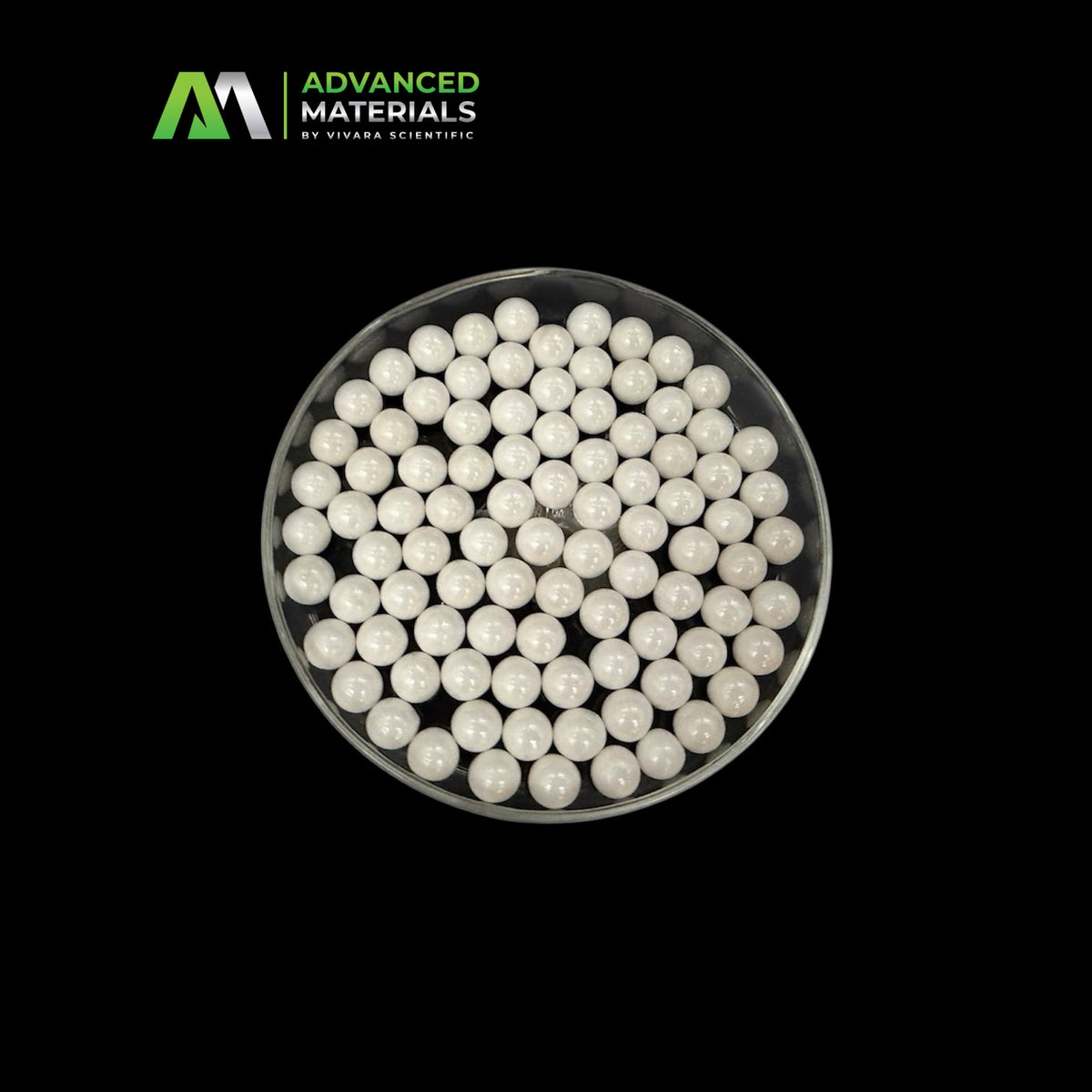

Zirconia Grinding Media

Two zirconia grades. Pick by how you mill.

Both grades wear at 0.1‰/h or less, so almost nothing from the media ends up in your powder. The difference is how they hold up: YSZ brings the most impact energy, while Ce-TZP resists aging in long, hot, wet runs.

YSZ (Y-TZP)Ce-TZPCompositionZrO2 ≥ 94.8%, Y2O3 ≤ 5.2%ZrO2 ≥ 80%, CeO2 ≤ 20% Density≥ 6.0 g/cm³≥ 5.95 g/cm³ Vickers hardness≥ 8 GPa≥ 10 GPa Crushing strength≥ 2,500 N≥ 2,000 N Wear loss≤ 0.1‰/h≤ 0.1‰/h Sizes3 mm, 10 mm0.6–0.8 mm, 2.8–3.2 mm Best forHigh-impact ball mill and attritor work; battery precursorsLong continuous bead-mill runs; nano dispersion Listed price$82.36 (3 mm), $83.96 (10 mm)$83.96

Choosing a bead size

• 0.6–0.8 mm: nanoscale dispersion and ultra-fine wet milling
• 2.8–3.2 mm and 3 mm: fine and intermediate milling
• 10 mm: coarse and intermediate grinding in ball mills and attritors

More detail in our guide: how to choose grinding media.

Milling cathode precursors or electrode slurries?

Iron and silicon worn off steel or low-grade media end up in your cathode and show up in your cell data. Pair zirconia beads with our zirconia planetary jar (measured at 0.0009% Fe2O3) for a low-contamination setup. Need the cathode too? See our cathode materials.
